This module contains subroutines to compute and write snapshots of a mesh composed by hexahedron elements (VTK XML formats).

Public Member Functions
subroutine, public	init_snapshot_volume ()
	This subroutine intializes the VTK mesh used for volume snapshots by calling 'get_efi_hexa' and 'init_vtk_mesh'.

subroutine, public	write_snapshot_volume ()
	This subroutine manages output format for volume snapshot. For now, only VTK format is available. Each cpu writes its own part of the mesh.

subroutine, public	write_snapshot_volume_vtk (fname, gll_var_x, name_var_x, gll_var_y, name_var_y, gll_var_z, name_var_z)
	This subroutine writes volume snapshot in a VTK XML file that contains a maximum of three vectors. More...

subroutine, public	write_collection_vtk_vol ()
	This subroutine selects which ParaView collection files should be written (displacement, velocity and/or acceleration collections) depending on value of variables mod_global_variables::lg_snapshot_volume_displacement, mod_global_variables::lg_snapshot_volume_velocity and mod_global_variables::lg_snapshot_volume_acceleration.

Private Member Functions
subroutine, private	get_efi_hexa (efi_hexa, efi_nhexa, xmin, xmax, ymin, ymax, zmin, zmax)
	This subroutine finds and stores the number of EFISPEC's hexahedron elements used for generating VTK mesh. More...

subroutine, private	init_vtk_mesh (efi_hexa, efi_hexa_gll_glonum, vtk_hexa_conn, vtk_node_x, vtk_node_y, vtk_node_z, vtk_node_gll_glonum, vtk_cell_type, vtk_offset, vtk_nhexa, vtk_nnode)
	This subroutines manages the generation of a VTK mesh from spectral elements GLL nodes. More...

subroutine, private	init_vtk_node (hexa, nhexa, efi_hexa_gll_glonum, gll, ngll, ngll_unique)
	This subroutine finds which GLL nodes to use for generating a VTK mesh. More...

subroutine, private	init_vtk_node_numbering (node, gll, nnode, ngll)
	This subroutine generates i) VTK nodes' numbering from 0 to n-1 and ii) indirection array from VTK's geometric nodes to EFISPEC's GLL nodes. More...

subroutine, private	init_vtk_hexa_connectivity (hexa, efi_nhexa, node, ngll, efi_hexa_gll_glonum, vtk_hexa, vtk_nhexa)
	This subroutine creates the connectivity array for defining VTK hexahedron elements from VTK geometric nodes. More...

subroutine, private	write_medium ()
	This subroutine prepares the arrays for writing elastic properties of the medium.

subroutine, private	collection_vtk_volume (varname)
	This subroutine write Paraview collection file .pvd of VTK XML volume snapshot files .vtu. More...

Detailed Description

Definition at line 127 of file module_snapshot_volume.f90.

Member Function/Subroutine Documentation

subroutine, private mod_snapshot_volume::collection_vtk_volume ( character(len=*), intent(in) varname )

private

Parameters

varname : variable name

Definition at line 953 of file module_snapshot_volume.f90.

Referenced by write_collection_vtk_vol().

subroutine, private mod_snapshot_volume::get_efi_hexa	(	integer, dimension(:), intent(out), allocatable	efi_hexa,
		integer, intent(in)	efi_nhexa,
		real, intent(in)	xmin,
		real, intent(in)	xmax,
		real, intent(in)	ymin,
		real, intent(in)	ymax,
		real, intent(in)	zmin,
		real, intent(in)	zmax
	)

private

Returns: efi_hexa : EFISPEC's hexahedron elements used for generating VTK mesh

Parameters

efi_hexa	: EFISPEC's hexahedron elements used for generating VTK mesh
efi_nhexa	: number of hexahedron elements in EFISPEC mesh
xmin	: minimal \(x\)-coordinate of the box of volume snapshot
xmax	: maximal \(x\)-coordinate of the box of volume snapshot
ymin	: minimal \(y\)-coordinate of the box of volume snapshot
ymax	: maximal \(y\)-coordinate of the box of volume snapshot
zmin	: minimal \(z\)-coordinate of the box of volume snapshot
zmax	: maximal \(z\)-coordinate of the box of volume snapshot

Definition at line 228 of file module_snapshot_volume.f90.

References mod_coordinate::compute_hexa_point_coord().

Referenced by init_snapshot_volume().

Here is the call graph for this function:

subroutine, private mod_snapshot_volume::init_vtk_hexa_connectivity	(	integer, dimension(efi_nhexa), intent(in)	hexa,
		integer, intent(in)	efi_nhexa,
		integer, dimension(ngll), intent(in)	node,
		integer, intent(in)	ngll,
		integer, dimension(ig_ngll,ig_ngll,ig_ngll,ig_nhexa), intent(in)	efi_hexa_gll_glonum,
		integer, dimension(:), intent(out), allocatable	vtk_hexa,
		integer, intent(out)	vtk_nhexa
	)

private

Parameters

hexa	: list of EFISPEC hexahedron elements used for generating VTK mesh
efi_nhexa	: total number of element in array 'hexa'
node	: VTK geometric nodes
ngll	: total number of unique GLL nodes in EFISPEC mesh
efi_hexa_gll_glonum	: EFISPEC indirection array from local to global GLL nodes numbering
vtk_hexa	: connectivity array for defining VTK hexahedron elements from VTK geometric nodes
vtk_nhexa	: total number of VTK hexahedron elements

Returns: vtk_hexa : connectivity array for defining VTK hexahedron elements from VTK geometric nodes; vtk_nhexa : total number of VTK hexahedron elements

Definition at line 570 of file module_snapshot_volume.f90.

Referenced by init_vtk_mesh().

subroutine, private mod_snapshot_volume::init_vtk_mesh	(	integer, dimension(:), intent(in)	efi_hexa,
		integer, dimension(ig_ngll,ig_ngll,ig_ngll,ig_nhexa), intent(in)	efi_hexa_gll_glonum,
		integer, dimension(:), intent(out), allocatable	vtk_hexa_conn,
		real, dimension(:), intent(out), allocatable	vtk_node_x,
		real, dimension(:), intent(out), allocatable	vtk_node_y,
		real, dimension(:), intent(out), allocatable	vtk_node_z,
		integer, dimension(:), intent(out), allocatable	vtk_node_gll_glonum,
		integer(kind=1), dimension(:), intent(out), allocatable	vtk_cell_type,
		integer, dimension(:), intent(out), allocatable	vtk_offset,
		integer, intent(out)	vtk_nhexa,
		integer, intent(out)	vtk_nnode
	)

private

Parameters

efi_hexa	: EFISPEC hexahedron elements whose GLL nodes will be used to generate a VTK mesh composed by 8-node hexahedron elements
efi_hexa_gll_glonum	: EFISPEC indirection array from local to global GLL nodes numbering
vtk_hexa_conn	: VTK hexahedron elements connectivity array
vtk_node_gll_glonum	: VTK indirection array from VTK's geometric nodes to EFISPEC's GLL nodes
vtk_cell_type	: VTK cell type
vtk_offset	: VTK offset array
vtk_node_x	: \(x\)-coordinate of VTK mesh nodes
vtk_node_y	: \(y\)-coordinate of VTK mesh nodes
vtk_node_z	: \(z\)-coordinate of VTK mesh nodes
vtk_nhexa	: number of hexahadron element in VTK mesh
vtk_nnode	: number of geometric nodes in VTK mesh

Returns: vtk_hexa_conn : VTK hexahedron elements connectivity array; vtk_node_gll_glonum : VTK indirection array from VTK's geometric nodes to EFISPEC's GLL nodes; vtk_cell_type : VTK cell type; vtk_offset : VTK offset array; vtk_node_x : \(x\)-coordinate of VTK mesh nodes; vtk_node_y : \(y\)-coordinate of VTK mesh nodes; vtk_node_z : \(z\)-coordinate of VTK mesh nodes; vtk_nhexa : number of hexahadron element in VTK mesh; vtk_nnode : number of geometric nodes in VTK mesh

Definition at line 328 of file module_snapshot_volume.f90.

References init_vtk_hexa_connectivity(), init_vtk_node(), and init_vtk_node_numbering().

Referenced by init_snapshot_volume().

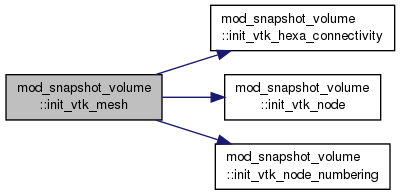

Here is the call graph for this function:

subroutine, private mod_snapshot_volume::init_vtk_node	(	integer, dimension(nhexa), intent(in)	hexa,
		integer, intent(in)	nhexa,
		integer, dimension(ig_ngll,ig_ngll,ig_ngll,ig_nhexa), intent(in)	efi_hexa_gll_glonum,
		integer, dimension(ngll), intent(out)	gll,
		integer, intent(in)	ngll,
		integer, intent(out)	ngll_unique
	)

private

Parameters

hexa	: EFISPEC hexahedron elements used for
nhexa	: number of EFISPEC hexahedron elements
efi_hexa_gll_glonum	: EFISPEC indirection array from local to global GLL nodes numbering
ngll	: total number of unique GLL nodes in EFISPEC mesh
gll	: GLL nodes used for generating VTK nodes
ngll_unique	: total number of unique GLL nodes used for generating VTK nodes

Returns: gll : GLL nodes used for generating VTK nodes; ngll_unique : total number of unique GLL nodes used for generating VTK nodes

Definition at line 437 of file module_snapshot_volume.f90.

Referenced by init_vtk_mesh().

subroutine, private mod_snapshot_volume::init_vtk_node_numbering	(	integer, dimension(ngll), intent(out)	node,
		integer, dimension(:), intent(out), allocatable	gll,
		integer, intent(in)	nnode,
		integer, intent(in)	ngll
	)

private

Parameters

node	: VTK nodes with numbering from 0 to nnode-1
gll	: VTK indirection array from VTK's geometric nodes to EFISPEC's GLL nodes
nnode	: total number of unique geometric nodes in VTK mesh
ngll	: total number of unique GLL nodes in EFISPEC mesh

Returns: node : VTK nodes with numbering from 0 to nnode-1; gll : VTK indirection array from VTK's geometric nodes to EFISPEC's GLL nodes

Definition at line 512 of file module_snapshot_volume.f90.

Referenced by init_vtk_mesh().

subroutine, public mod_snapshot_volume::write_snapshot_volume_vtk	(	character(len=255), intent(in)	fname,
		real, dimension(ig_ngll_total), intent(in), optional	gll_var_x,
		character(len=*), intent(in), optional	name_var_x,
		real, dimension(ig_ngll_total), intent(in), optional	gll_var_y,
		character(len=*), intent(in), optional	name_var_y,
		real, dimension(ig_ngll_total), intent(in), optional	gll_var_z,
		character(len=*), intent(in), optional	name_var_z
	)

Parameters

fname	: VTK file name
gll_var_x	: vector number 1 to be written in VTK file. The vector must be stored in an array ordered by unique GLL nodes number.
name_var_x	: name of the variable in vector number 1.
gll_var_y	: vector number 2 to be written in VTK file. The vector must be stored in an array ordered by unique GLL nodes number.
name_var_y	: name of the variable in vector number 2.
gll_var_z	: vector number 3 to be written in VTK file. The vector must be stored in an array ordered by unique GLL nodes number.
name_var_z	: name of the variable in vector number 3.

Definition at line 725 of file module_snapshot_volume.f90.

References mod_vtk_io::vtk_con_xml(), mod_vtk_io::vtk_dat_xml(), mod_vtk_io::vtk_end_xml(), and mod_vtk_io::vtk_ini_xml().

Referenced by write_medium(), and write_snapshot_volume().

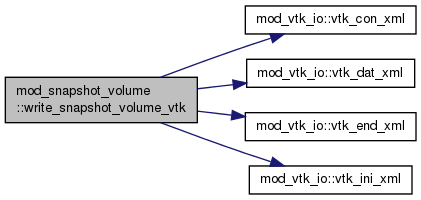

Here is the call graph for this function:

The documentation for this module was generated from the following file:

module_snapshot_volume.f90
