Introducing EFISPEC
EFISPEC stands for "Element-FInis SPECtraux".
EFISPEC3D is a free code that solves the three-dimensional wave equations using a spectral-finite-element method (SFEM); commonly called spectral-element method (SEM).

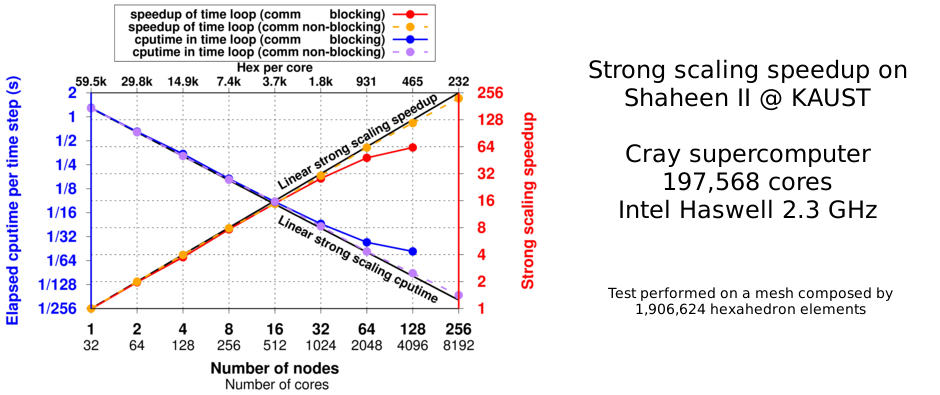

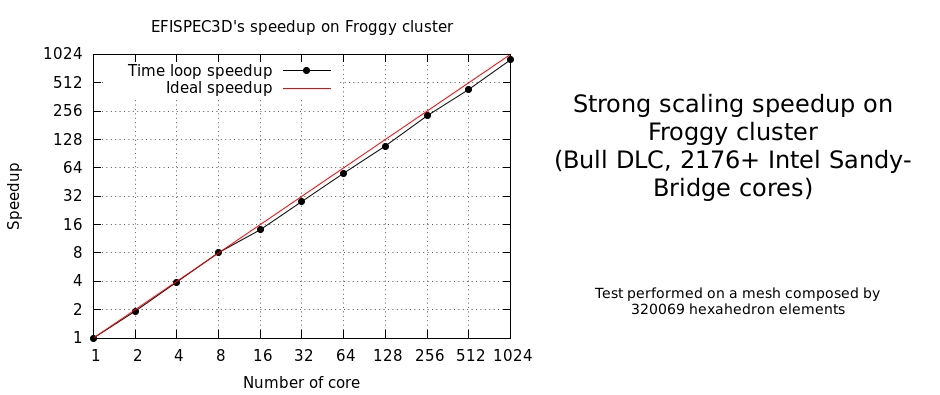

EFISPEC3D is programmed in FORTRAN08 and MPI to run on parallel architectures. It is under a double license: CeCILL V2 and GNU GPL V3.
Features
- Linear elastic rheology
- Linear viscoelastic rheology (memory variables method)
- Nonlinear plastic rheology (extended Masing's rules)
- Paraxial boundary absorption
- Extended sources
- Single force sources

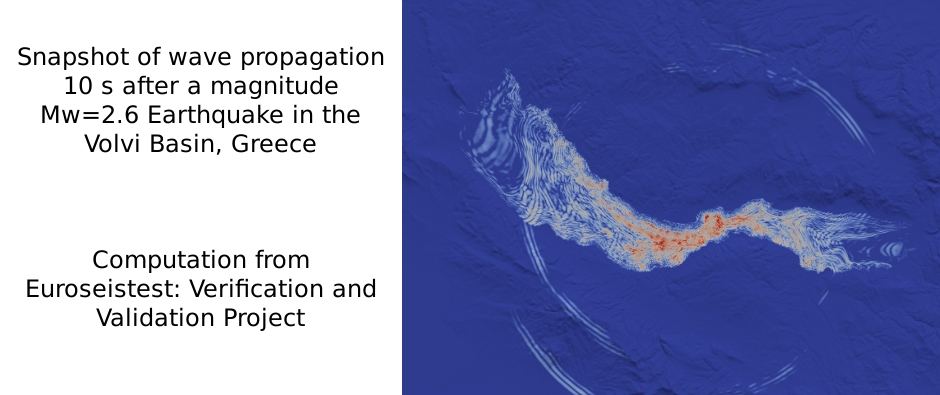

- Free surface snapshots

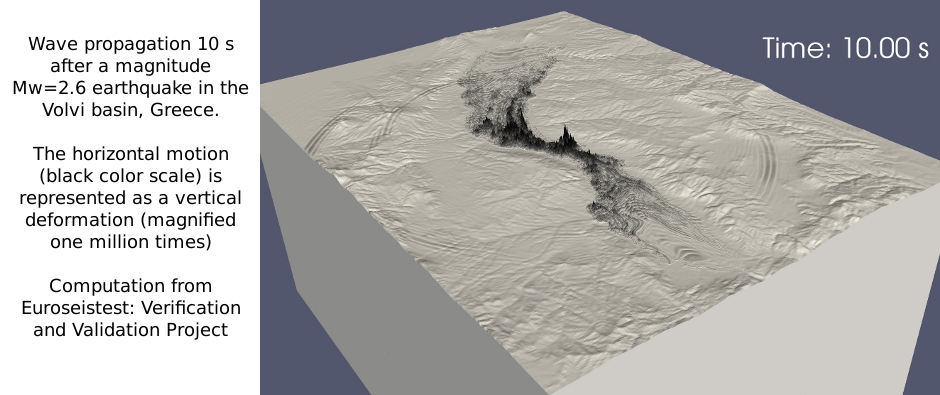

- Volume snapshots
Compatibilities
- Compatible with CUBIT mesh generating tool (read ABAQUS and ExodusII mesh formats)
- Use METIS library for mesh partitioning
- Output binary grd files readable by Generic Mapping Tools
- Output binary VTK xml files generated by Lib_VTK_IO
- Binary VTK xml file directly readable by ParaView or VTK-Python
