mod_init_medium Module Reference

This module contains subroutines to initialize medium for hexahedron and quadrangle elements. It also contains subroutines to write medium in binary VTK xml format readable by ParaView.

Public Member Functions
subroutine, public	init_hexa_medium ()
	This subroutine fills medium properties (elastic or viscoelastic) at GLL nodes of hexahedron elements based on material number found in file *.inp generated by CUBIT mesh generator. If files *.cpu.*.mat are present in the simulation's directory, then material number of hexahedron elements are read from files *.cpu*.mat. More...
subroutine, public	init_quadp_medium ()
	This subroutine fills medium properties at GLL nodes of paraxial quadrangle elements (i.e., absorbing boundary) based on material number of hexahedron elements it belongs. More...

Private Member Functions
subroutine, private	init_medium_from_mat_file (il_mat_num_of_hexa)
	This subroutine fills medium properties at GLL nodes of hexahedron elements based on material number in files *.cpu*.mat. More...
subroutine, private	write_medium_vtk_cell_xml ()
	This subroutine writes S and P-wave velocities of the physical domain of cpu myrank in UnstructuredGrid binary vtk_cell xml file readable by ParaView. More...
subroutine, private	write_medium_vtk_node_xml (var1, var2)
	This subroutine writes S and P-wave velocities of the physical domain of cpu myrank in UnstructuredGrid binary vtk_node xml file readable by ParaView. More...
subroutine, private	write_medium_collection ()
	This subroutine writes a VTK xml collection file *.pvd which contains all *.vtu files generated by write_medium_vtk_cell_xml or write_medium_vtk_node_xml. More...

Detailed Description

Definition at line 126 of file module_init_medium.f90.

Member Function/Subroutine Documentation

subroutine, public mod_init_medium::init_hexa_medium

(

)

Returns

mod_global_variables::rg_hexa_gll_rho

mod_global_variables::rg_hexa_gll_rhovs2

mod_global_variables::rg_hexa_gll_rhovp2

mod_global_variables::rg_hexa_gll_wkqs

mod_global_variables::rg_hexa_gll_wkqp

mod_global_variables::rg_mem_var_exp

mod_global_variables::tg_elastic_material

mod_global_variables::tg_viscoelastic_material

Definition at line 158 of file module_init_medium.f90.

References init_medium_from_mat_file(), and write_medium_vtk_node_xml().

Referenced by efispec3d().

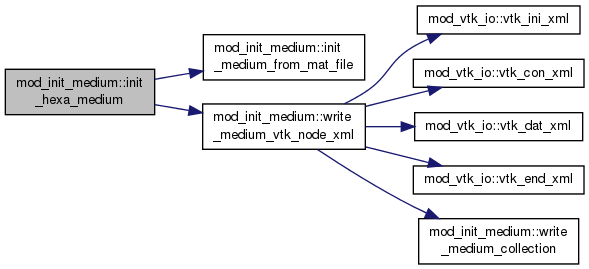

Here is the call graph for this function:

subroutine, private mod_init_medium::init_medium_from_mat_file ( integer, dimension(:), intent(out)  il_mat_num_of_hexa )

private

Parameters

il_mat_num_of_hexa

: array filled with material number of hexahedron elements in cpu myrank.

Definition at line 552 of file module_init_medium.f90.

Referenced by init_hexa_medium().

subroutine, public mod_init_medium::init_quadp_medium

(

)

Returns

mod_global_variables::rg_quadp_gll_rhovs

mod_global_variables::rg_quadp_gll_rhovp

Definition at line 433 of file module_init_medium.f90.

Referenced by efispec3d().

subroutine, private mod_init_medium::write_medium_collection ( )

private

Returns

files *.medium.collection.pvd

Definition at line 908 of file module_init_medium.f90.

Referenced by write_medium_vtk_cell_xml(), and write_medium_vtk_node_xml().

subroutine, private mod_init_medium::write_medium_vtk_cell_xml ( )

private

Returns

files *.vtu

Definition at line 585 of file module_init_medium.f90.

References mod_vtk_io::vtk_con_xml(), mod_vtk_io::vtk_dat_xml(), mod_vtk_io::vtk_end_xml(), mod_vtk_io::vtk_ini_xml(), and write_medium_collection().

Here is the call graph for this function:

subroutine, private mod_init_medium::write_medium_vtk_node_xml ( real, dimension(ig_ngll,ig_ngll,ig_ngll,ig_nhexa), intent(in)  var1, real, dimension(ig_ngll,ig_ngll,ig_ngll,ig_nhexa), intent(in)  var2  )

private

Returns

files *.vtu

Definition at line 720 of file module_init_medium.f90.

References mod_vtk_io::vtk_con_xml(), mod_vtk_io::vtk_dat_xml(), mod_vtk_io::vtk_end_xml(), mod_vtk_io::vtk_ini_xml(), and write_medium_collection().

Referenced by init_hexa_medium().

Here is the call graph for this function:

---

The documentation for this module was generated from the following file:

• module_init_medium.f90
