This module contains subroutines to initialize some global variable vectors and matrices.

Public Member Functions
subroutine, public	init_mpi ()
	This subroutine initializes MPI. More...

subroutine, public	init_input_variables ()
	This subroutine initializes the simulation by writing header of listing file .lst and reading variables of configuration file .cfg. More...

subroutine, public	init_temporal_domain (t, dt)
	This subroutine initializes the number of time step of the simulation and the squared time step. More...

subroutine, public	init_temporal_saving (ndt)
	This subroutine set saving information for receivers and snapshots. More...

subroutine, public	init_gll_nodes ()
	This subroutine computes GLL nodes abscissa and weight in the reference domain [-1:1] as well as derivative of Lagrange polynomials at GLL nodes. More...

subroutine, public	init_gll_nodes_coordinates ()
	This subroutine computes GLL nodes \(x,y,z\)-coordinates in the physical domain, cartesian right-handed coordinate system. More...

subroutine, public	init_mass_matrix ()
	This subroutine computes and assembles the mass matrix \(M\) of the system \( M\ddot{U} + C\dot{U} + KU = F^{ext} \). More...

subroutine, public	init_jacobian_matrix_hexa ()
	This subroutine computes Jacobian matrix and its determinant for hexahedron elements. More...

subroutine, public	init_jacobian_matrix_quad ()
	This subroutine computes the determinant of Jacobian matrix and normal unit vector of quadrangle elements. More...

Detailed Description

Definition at line 126 of file module_init_efi.f90.

Member Function/Subroutine Documentation

subroutine, public mod_init_efi::init_gll_nodes ( )

Reference: C. Canuto, M. Y. Hussaini, A. Quarteroni, T. A. Tang, "Spectral Methods in Fluid Dynamics," Section 2.3. Springer-Verlag 1987

Authors: Initially written for Matlab by G. von Winckel - 04/17/2004. Translated in FORTRAN for EFISPEC3D by F. De Martin

Returns: mod_global_variables::rg_gll_abscissa : GLL node coordinates \(\xi,\eta,\zeta\) in the reference domain [-1:1]; mod_global_variables::rg_gll_weight : GLL node weights; mod_global_variables::rg_gll_lagrange_deriv : derivative of Lagrange polynomials at GLL nodes; mod_global_variables::rg_gll_abscissa_dist : inverse of distance between GLL nodes

Definition at line 578 of file module_init_efi.f90.

Referenced by efispec3d().

Here is the call graph for this function:

subroutine, public mod_init_efi::init_gll_nodes_coordinates ( )

Returns: mod_global_variables::rg_gll_coordinate : GLL nodes \(x,y,z\)-coordinates in cpu myrank

Definition at line 703 of file module_init_efi.f90.

Referenced by efispec3d().

Here is the call graph for this function:

subroutine, public mod_init_efi::init_input_variables ( )

Returns: global variables read from file *.cfg needed to initialize a simulation

Definition at line 195 of file module_init_efi.f90.

Referenced by efispec3d().

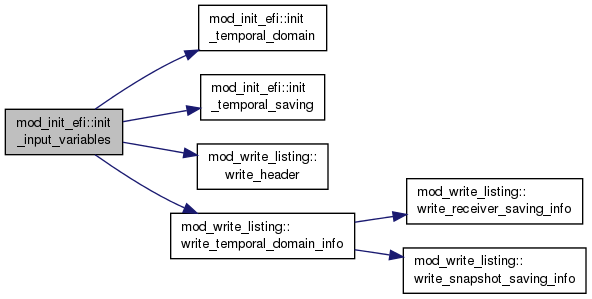

Here is the call graph for this function:

subroutine, public mod_init_efi::init_jacobian_matrix_hexa ( )

Returns: rg_hexa_gll_jacobian_det : determinant of jacobian matrix at GLL nodes of hexahedron elements in cpu myrank; rg_hexa_gll_dxidx : \( \frac{\partial \xi }{\partial x} \) at GLL nodes of hexahedron elements; rg_hexa_gll_dxidy : \( \frac{\partial \xi }{\partial y} \) at GLL nodes of hexahedron elements; rg_hexa_gll_dxidz : \( \frac{\partial \xi }{\partial z} \) at GLL nodes of hexahedron elements; rg_hexa_gll_detdx : \( \frac{\partial \eta }{\partial x} \) at GLL nodes of hexahedron elements; rg_hexa_gll_detdy : \( \frac{\partial \eta }{\partial y} \) at GLL nodes of hexahedron elements; rg_hexa_gll_detdz : \( \frac{\partial \eta }{\partial z} \) at GLL nodes of hexahedron elements; rg_hexa_gll_dzedx : \( \frac{\partial \zeta}{\partial x} \) at GLL nodes of hexahedron elements; rg_hexa_gll_dzedy : \( \frac{\partial \zeta}{\partial y} \) at GLL nodes of hexahedron elements; rg_hexa_gll_dzedz : \( \frac{\partial \zeta}{\partial z} \) at GLL nodes of hexahedron elements

Definition at line 974 of file module_init_efi.f90.

Referenced by efispec3d().

Here is the call graph for this function:

subroutine, public mod_init_efi::init_jacobian_matrix_quad ( )

Returns: rg_quadp_gll_jaco_det : determinant of jacobian matrix at GLL nodes of quadrangle elements in cpu myrank; rg_quadp_gll_normal : normal unit vector at GLL nodes of quadrangle elements

Definition at line 1122 of file module_init_efi.f90.

Referenced by efispec3d().

Here is the call graph for this function:
