Finite-Element Types

8-node Hexahedron

8-node hexahedron elements are based on the following convention:

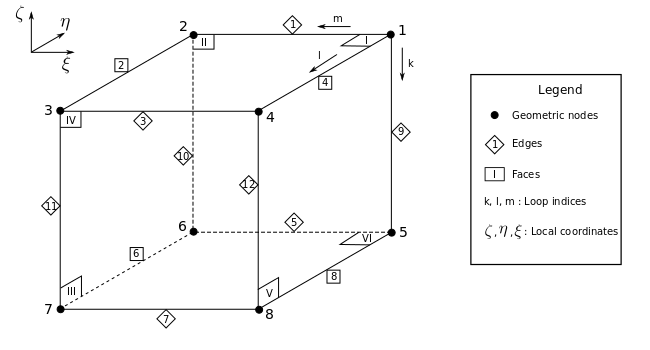

EFISPEC3D hexahedron numbering convention

4-node Quadrangle

4-node quadrangle elements are based on the following convention:

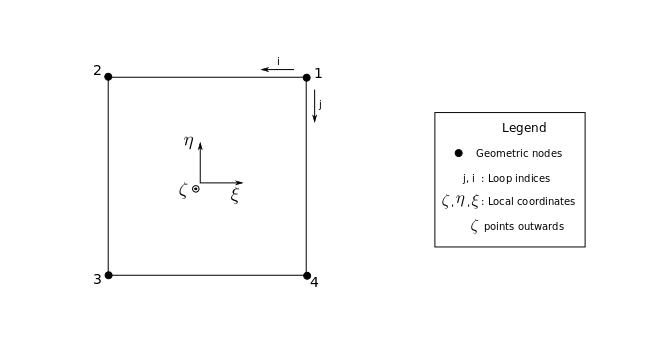

EFISPEC3D quadrangle numbering convention
